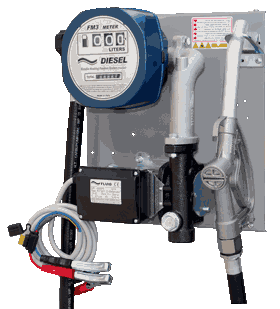

Battery Diesel Fuel Dispenser
FLW 60 DC 12V - 24V
Battery Diesel Fuel Dispenser with high flow rate, rotary battery electric vane pump, self-priming (max. suction height: 3 meters), with integrated inox filter, meter, delivery hose and automatic nozzle.
The Battery Diesel Fuel Dispenser is reliable, compactly, easy to install, affordable and with an excellent value for money.
This dispenser is suitable as fixed station on tank for refueling operations on agricultural machinery, construction equipment, airplanes, boats, generators and other machinery driven by internal combustion engines
Technical Specifications
- Direct Current brush motor with permanent magnet stator,
available at 12V and 24V for battery use
- Cast iron pump body finished with paint.
- Sintered steel rotor and thermoplastic resin vanes
- By-pass valve integrated on pump body
- 1” treathed connectors
- Inox filter, 100 micron
- Sealing ring ables also for low temperature
- Zinc-plated pump support brackets
- Motor protection grade: IP55
- Intermittent service: 40 minutes work cycle
- ON/OFF Switch
- Power cable (sec. 4 mmq, mt. 2 long), with pincers and fuse carrier
- Supply hose ø19 mm, with connector, mt. 4 long
- 3 digit flow meter
- Swivle connector
- Automatic nozzle
- Painted metal panel
- Nozzle holder, made in steel, with padlock facility
|
|
