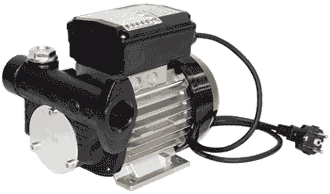

AC Motor Diesel Fuel Transfers Pumps
FLC 60 AC 230V 50Hz
Rotary electric vane pump, self-priming (max. suction height: 3 meters), with integreted inox filter, reliable, compactly and easy to install.
This pump is suitable on fixed dispenser to refuel operating and/or industrial machinery.
Technical Specifications
- Induction motor with thermal protector,
available at 230V-50Hz and 120/220V-60Hz - Cast iron pump body finished with paint.
- Sintered steel rotor and thermoplastic resin vanes
- By-pass valve integrated on pump body
- 1” treathed connectors
- Inox filter, 100 micron
- Sealing ring ables also for low temperature
- Motor protection grade: IP55
- Countinuos running: S1
- ON/OFF Switch
- Power cable
|
|
